Léon Hatot and ATO electric clocks
by Michel Viredaz
English text by Ian Richardson
This article was previously published in French in the bulletin Chronométrophilia No 56 (summer 2004).
The chapter headed "History" in the present article is largely composed of extracts from the internet site "Worldtempus", with grateful thanks to the International Centre of Horological Documentation(CIDH).
Born on the 22nd April 1883 at Châtillon Sur Seine, died on the 11th September 1953, Léon Hatot was a student at the School of Horology in Besançon between 1895 and 1898, then at the École des Beaux-Arts in Besançon. In 1905, at an early age, he set up his own business specialising in engraving watch cases which grew rapidly into a workshop employing artisans making high quality clocks in precious metals and jewels. He later established himself in Paris where, in 1911, he move in with the firm "Bredillard", while keeping his workshop in Besançon. He was then, and for a while afterwards, one of several creators of artistic clocks and jewellery, supplying the main dealers in the rue de la Paix.
In "La France Horlogère" in 1920 the Council includes, under specialist contributors, «Hatot Industriel et Artiste Bijoutier» or "Hatot, Industrial and Artistic Jeweller".
A questioning and visionary spirit, Léon Hatot interested himself very early on in the subject of electrical horology and, in 1920, founded a separate division for research and development of clocks and watches powered by electric cells. In the same year, his businesses both in Paris and in Besançon were amalgamated as a single company: "Société des Etablissements Léon Hatot". To assist in the research and development of electrical horology, in 1923 he collaborated with Marius Lavet, an engineer in Arts and Crafts at the Ecole Supérieure d'Electricité and who, like himself, was passionately interested in the applications of electricity in horology.
Trading under the name "ATO" from 1923, electric clocks were produced in Besançon in a partially rebuilt factory in the rue de la Rotonde. They were an immediate unprecedented success in the market place. At the Exposition Internationale des Arts Décoratifs in 1925, Léon Hatot won a Grand Prix for a whole range of electric clocks, housed in marble, chrome, marquetry and fine wood cases, even in some instances in cases of moulded glass from the famous Lalique factories (Fig. 5). Léon Hatot was decorated with the Legion of Honour and nominated as a judge in the commercial tribunal in the Seine as well as being a consultant in foreign trade.
In 1929, Léon Hatot made a significant invention with the automatic winding watch "ROLLS". In this device, the movement is wound by the motion of an arm sliding inside the case, guided by balls between two runners (original Patent No. 704.910 of 11 January 1930, first amendment No. 38.984, second amendment No. 39.523, completed on the 30th November 1931 by a third amendment No. 39.581). This invention was described by his friend Marius Lavet in the Bulletin of the Société d'Encouragement pour l'Industrie Nationale. This mechanism had the advantage of working with the minimum of friction and permitted the manufacture of movements of extremely small size, perfectly adapted to rectangular watches which were in fashion at the time - particularly for ladies watches. A contract dated 23rd September 1930 was drawn up between the Hatot company and a Monsieur Blancpain giving exclusive manufacturing rights and sole distribution right within France and Belgium for the autowinding "ROLLS" watches. Despite this invention, crowned by a Medal of Honour by the Société d'Encouragement pour l'Industrie Nationale, it did not yield the success it deserved as its commercial exploitation was affected by the world economic crisis of 1929.
Throughout this time, Léon Hatot maintained his workshop for jewellery and highly decorated watch cases in Paris which, in 1926, he put under the control of Edouard Dietsch who became engaged to his daughter.
The works then found a new period of growth which, helped by the sales of ATO electric clocks, financed the very expensive research into electrical horology which Léon Hatot pursued with his friend Marius Lavet - research which was spectacularly rewarded by the invention of the electric clock "ATO-RADIOLA" which received correcting time signals by radio waves. Described for the first time in May 1928 in issue No 2 of "Radiola", a publication of the French Radio Society (la Société Française Radioélectrique), the correcting signal was applied remotely over a distance of 250 kilometres by a radio signal transmitted from the Eiffel Tower or by Radio Paris during one of their concert broadcasts. It was said to be enough for the clock's owner to listen to one of these concerts at least once per week for the clock to be maintained at exactly the correct time. It is interesting to note that this device was "reinvented" and launched amid much publicity by Junghans at the end of the 1980's. The most significant part of this latter was the power of the transmitter, connected to the Observatory at Brunswick, whose signal carries almost 2,000 km.
In 1928, the Hatot company's premises at 23 rue de la Michodière were the subject of a compulsory purchase prior to demolition. That part of the business was transferred to a far more salubrious location at 12 Faubourg Saint Honoré which was soon frequented by a very particular clientele, rich and exacting, attracted by the range of high quality, highly decoarated watches which Edouard Dietsch had made his speciality. This new prosperity was, however, short-lived. In common with all luxury industries, they were direct casualties of the economic crisis which followed the Wall Street Crash of 1929.
By extending his export activities into Italy, Belgium and Germany, where he established agreements with Haller & Benzing and HAC (a company eventually taken over by Junghans) (Fig. 8) for the manufacture and distribution of ATO clocks, Léon Hatot not only saved his business but succeeded in developing it.
Not wishing to desert the Franche Comté completely, he maintained a small assembly workshop in Besançon. His great artistic qualities always made him want to make special pieces. As at the beginning of his career he conceived and realised with his own hands, on behalf of the town of Besançon, a very fine pocket watch which was presented to the French President, Armand Fallières, during one of his visits in Doubs.
Later, he designed and modelled the glass trophy presented each year to the horologist who obtained the best results in the annual competition the "Concours de Chronométrie". He was also a founder member of the French Horological Society.
At the Colonial Exhibition of 1931, Léon Hatot displayed electric clocks of very small proportions which were the origin of a new generation of decorative clocks. In particular, he created a new model, the concept and presentation of which were revolutionary, in which he dispensed with traditional decorated cases and made the movement itself the sole decorative element. (Fig 6). This paved the way for a whole new fashion which swept along most makers who adopted this "avant garde" using glass and chrome which blended perfectly with the furniture of the day. His fertile imagination also launched onto the market other original creations such at the "Aquatora" in which the time was shown on the circumference of an illuminated aquarium and the "Maplux" where the time anywhere in the world was shown along the equator of a terrestrial globe.
In parallel with his production of electric clocks, in 1933 Léon Hatot opened a new department for time distribution systems by means of a "master clock" which controlled several "slave clocks". This was done by taking over the business of Paul Garnier, founded in 1825 which specialised in time distribution at railway stations and public buildings. The transference of the factory at Besançon was at last decided upon, and the different services of the company were regrouped in the premises of Paul Garnier at 9, rue Beudan in Paris.
In 1939, from the beginning of the Second World War, the Hatot company was requisitioned for the production of Sperry gyrocompasses and other instruments for aviation (as the example of an altimeter shown below) as well as various navigational aids for the French Navy. The surrender in 1940 put an end to these activities as Léon Hatot refused any form of collaboration with the Germans.

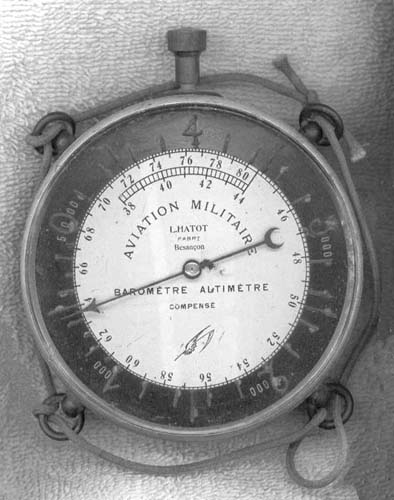

Aircraft altimeter for the French Air Force, WWII
It is indeed regrettable that he did not see the technical revolution to which horology underwent following the application of the transistor to this industry. Only days before his death, he knew of the first prototypes working in laboratories without any electrical contact and he foresaw their eventual success. Léon Hatot's whole life was dedicated to research into getting the best out everything he did and his extraordinary activity, his strong will, his inventive genius always in evidence enabled the business to prosper and, despite its modest size, influence much larger horological companies throughout the world.
The Hatot Company was among the first to embody in their instruments important improvements made possible by the application of transistors in horology (Fig 14 and Fig 15). Their first patents were filed on 16th September 1953, but the Hatot Company did not have sufficient funds to exploit their numerous patents worldwide, so they granted licences to several of the principal horological producers in the industrialised countries which is why there exist throughout the world millions of watches and clocks signed L. Leroy & Cie., Ebauches S.A., Junghans (Fig. 8), Westclox, Smith & Son, Bulova, Jaz et General Time, all carrying the words "Lic. ATO".
It was the same for the Chronostats I, II and III, electronic marine chronometers which were supplied by L. Leroy & Co. to the French Navy, the Ecole Normale Supérieure, la Compagnie Générale Transatlantique and the Institut de Physique du Globe. Chronostat III in particular was used for polar expeditions and was installed in Navy buildings and on the most prestigious vessels including the aircraft carriers "Clémenceau" and "Foch, the helicopter carrier "Jeanne d'Arc", and various submarines of the "Daphné" class. Eventually, following a decision by the Secretary General of the Merchant Navy dated 31st July 1959, the Chronostat III was derestricted and made available for use on liners and merchant ships, not only on the prestigious liner "France" and the splendid "Sovereign of the Sea" but also on numerous oil carriers and container ships of the Shell company.
Léon Hatot died on the 11th September 1953 at the age of 70, following a long illness after a life overflowing with activities in art, where he distinguished himself in the field of horology as one of the Masters of the Art-Deco period, and in science where his creative and visionary spirit gave birth to several inventions which heralded the development of horology in the third quarter of the 20th Century.
In 1967, the electrical horology branch of Lepaute took over the ATO production. A new type of seven segment digital clock was developed in 1978 and was immediately taken up by the French railways "SNCF". These clocks achieved such rapid success that they were copied on a grand scale. Although the Hatot Company adopted new production techniques and used miniature quartz crystals as time standards, the costs of research and development could not be recovered in small to medium series production. Competition from South East Asia forced the Hatot Company to abandon its industrial branch and concentrate on the sale of quality watches and domestic battery electric clocks marketed under the names "ATO-LEPAUTE" and "ATO - PAUL GARNIER".
The entire stock of watches and jewellery, conserved intact in a bank vault after the declaration of WWII, was put up for public auction by Christie's in Geneva on the 1st of May 1989.
The precious Hatot company archives and in particular almost 5,000 magnificent coloured designs for watches and fine jewellery, the inestimable contribution made by Léon Hatot to the flowering of the Art Dec style of the period 1910-1930, are today in the possession of the new Hatot compay, now a member of the Swatch Group who have kindly made available to us the following two designs, which illustrate this chapter in history.
Drawing by Léon Hatot, from the Art-Déco period
Drawing by Léon Hatot, from the Art-Déco period
ATO electric clocks
In this chapter we concentrate on a description of the most every-day electro-magnetic ATO clocks. We have seen earlier that L Hatot and his business were the source of numerous inventions, all of which we cannot discuss within the scope of this article, especially as they are not often found in the antiquarian clock market.
All ATO clocks rely on the same principal, the result of work by Féry, that is to say the "pendulum motor", equipped with a permanent magnet, passes through a coil of wire. The same principal was also used by the major French manufacturers, including - apart from Hatot - Brillié, Bulle-Clock and several others. This principle differs from that of Hipp, for example, which uses electromagnets - that is to say fixed coils of wire containing a core of soft iron which attract a soft iron armature fitted to the pendulum. Other constructors (Holden LR, Garnier, Cluses) used a flat coil of wire which passed between the two poles of a permanent magnet
In ATO clocks, the coil is fixed to the frame and the magnet is curved to follow the arc of swing of the pendulum. It is similar to Brillié, Charvet or Vaucanson which have the magnet in the form of a horse shoe. Bulle-Clock by contrast inverts the construction, putting the coil at the end of the pendulum and fixing the curved bar magnet to the frame. In all these clocks, the impulse, initiated by an electrical contact in one manner or another by the pendulum occurs on alternate swings or, as may be more correctly stated, once per oscillation. See the schematic diagram (Fig. 1), extracted from the famous work by Guye and Bossart.

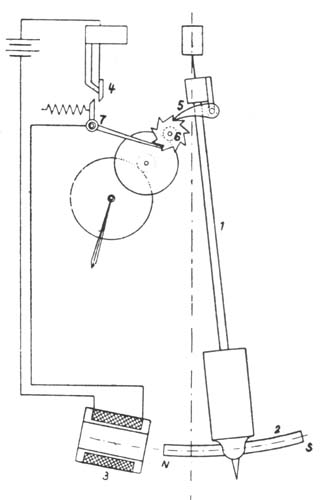

Fig 1 - Independent Ato clock: 1 pendulum, 2 permanent magnet, 3 coil, 4 contact, 5 driving click or pawl, 6 countwheel or ratchet, 7 back-stop click, which also activates the contact
Returning to the notion of a "pendulum motor" of this construction, it is a concept quite different from that of a mechanical clock. In a mechanical clock there is a linked chain of parts: driving force, wheels, an escapement and an oscillator - a concept unchanged since the 13th century! In a clock with magnetic impulsion, like Ato, the "pendulum motor" is as its name suggests both the motor and the oscillator. It takes on two functions simultaneously of the "chain" mentioned above. To this is generally added a system of click and wheel which transmit the pendulum movement to "motion work" fitted with hands. This is the case with Ato, but it is not the only way. For precision clocks, in order to reduce friction, one may dispense with the system of click-countwheel-wheelwork-hands by an electrical contact which in turn activates a secondary clock which has a dial and hands (Favag, Cyma etc.)
Ato clocks exist with two lengths of pendulum: ½ second and ¼ second. The principle is the same in both but the construction of the contact and suspension are different. The "pendulettes" of ¼ second period are more delicate and subject to more wear than those of the ½ second.
In some Ato clocks, in addition to the coil, there is a copper tube at the opposite end of the magnet arc which corrects the arc for variations in the battery voltage by using self-induced "Foucault" currents which result from the passing to and fro of the magnet through the tube.
Without major constructional differences, Hatot derived a system for time distribution from these two types of clock. The master clock (or "mother clock") is in each case of the ½ second type in which the pendulum is equipped with contacts to the right and left. At each alternate swing, these contacts transmit a current directly to the coil of one or more ¼ second clocks which do not have their own contact system, such that they are synchronised with the master clock and each "secondary clock" receives an impulse at each of these oscillations. One may also use standard ¼ second clocks for this duty, provided that their switched contacts are short-circuited. Such an installation is illustrated in Fig 2, drawn from "Pamphlet III" from the Hatot Company, dated 1925 and also in Figs. 9, 10 and 11.

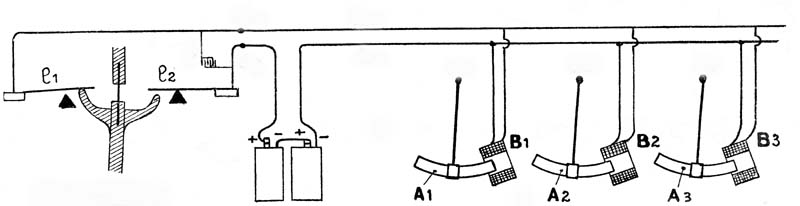

Fig 2: ATO time transmission system: l1,2 contacts on Master Clock pendulum, A1,2,3 secondary clock permanent magnets, B1,2,3 secondary clock coils.
There is also an ATO clock which sounds the hour and half hour electromagnetically, which is rare in electrical horology (Fig 12). Most striking electric clocks are of the electrically rewound type in which the striking is purely mechanical of traditional design (Zenith, Mauthe, Kienzle, etc.). Here we have a combination of ideas: the counting of the hour is by a snail, the striking hammer is activated by an electromagnet and the frequency of hammer blows is determined by the oscillations of the pendulum (precisely 1 blow per second).
Finally, one must mention the first transistorised Ato clock of 1953-54 (Figs 14 and 15). This comprises a construction largely as those already described, but the mechanical contact, activated by the pendulum is replaced a second coil and a transistor. This coil does not receive any current, but generates it by the passage of the magnet through its centre. The feeble current thus induced excites the transistor which allows current to pass from the battery to the motor coil. For more detail on this subject see the diagram in Fig 3, extracted from the second edition of the work by Guye and Bossart. This system was devised by messrs. M. Lavet and J. Dietsch.

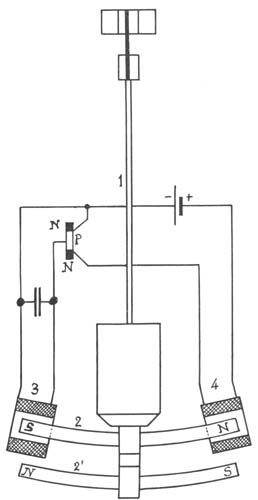

Fig. 3 : ATO transistorised electric clock: 1 pendulum, 2 and 2’ permanent magnets, 3 trigger coil, 4 motor coil, NPN transistor.

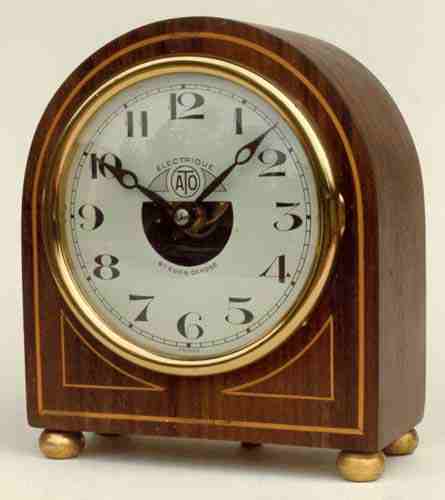

Fig. 4 : ATO Pendulette ¼ s "milestone" shape, a classic shape used by many French makers at the time.

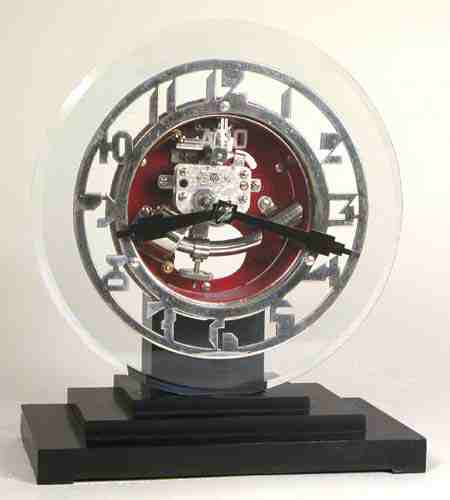

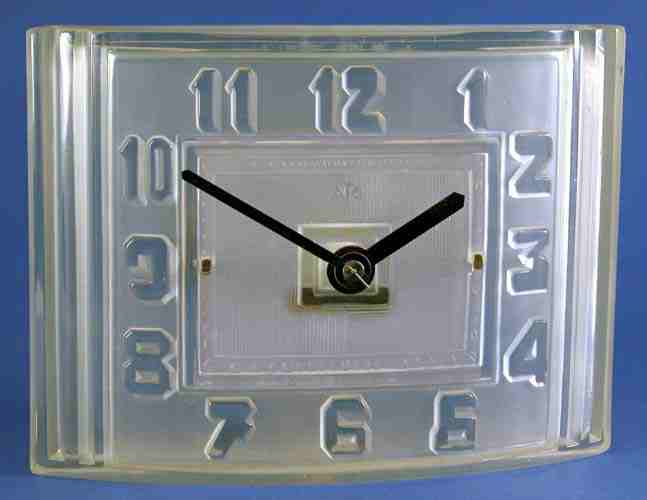

Fig. 5 : ATO Pendulette 1/4s in a one piece case with dial, made by the famous glass designer Lalique (controversial).
Fig. 6 : ATO Pendulette 1/4s typically Art-Déco, in which the movement itself forms the decoration.

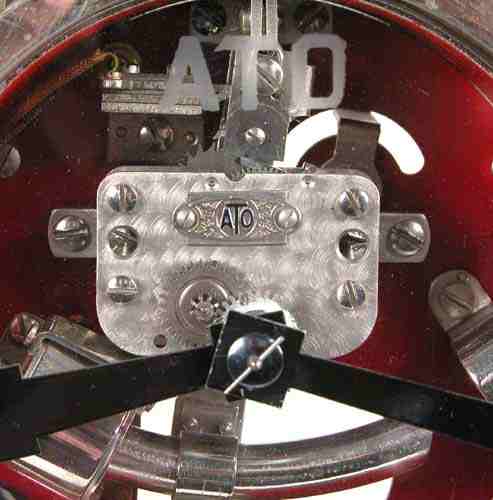

Fig. 7 : The highly finished movement of the previous clock

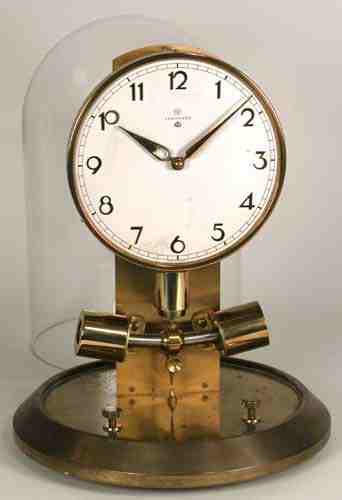

Fig. 8 : Pendulette under a glass cloche, made by Junghans under licence from ATO. The lacquer has not prevented the base from tarnishing.

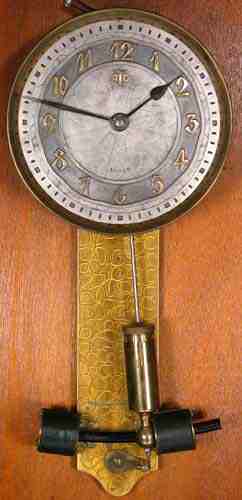

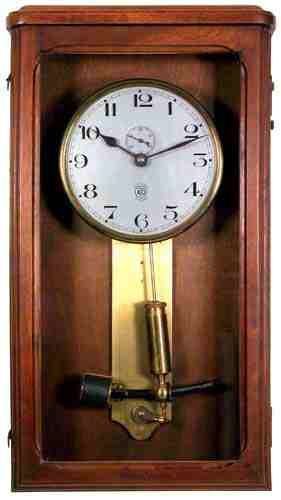

Fig. 9 : ATO ½ second master clock. One can just see at the top right two terminals to connect wires to the secondary clocks. Note also the system to lock the pendulum for transport, very characteristic of ATO

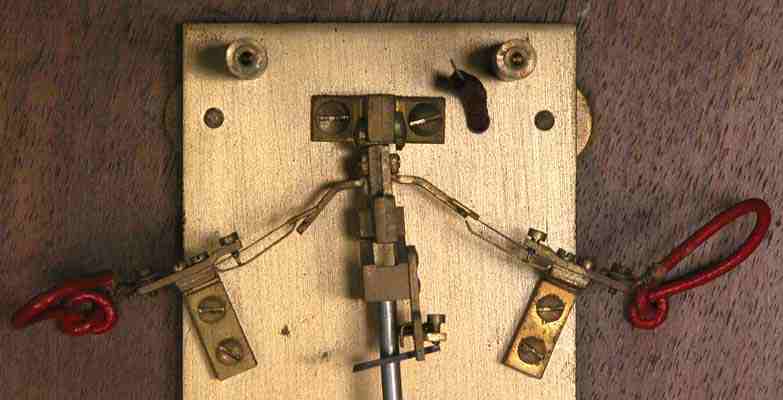

Fig. 10 : At the top, one can see two contacts, on the right and on the left of the pendulum in the master clock. Below, one can see the click which engages the ratchet of the movement (see Fig 11)

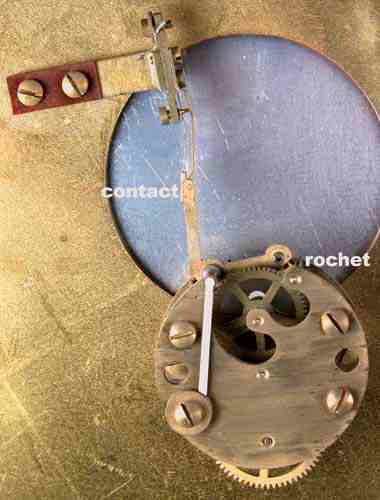

Fig. 11 : View of the movement of the master clock. On the left, the contact and on the right the ratchet which is driven by the click on the pendulum rod.

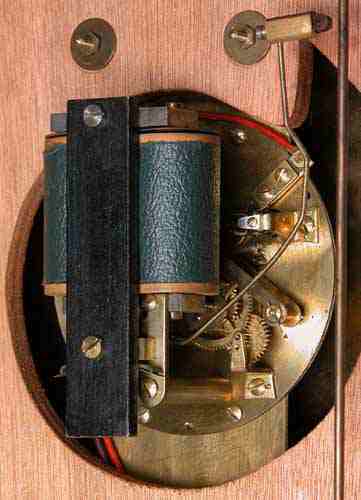

Fig. 12 : Electro-magnetic movement for striking the hours and the half hours in an ATO 1/2 second clock.
Fig. 13 : The beautiful dial and main plates, typically Art-Déco, of the striking clock above.
Fig. 14 : One of the first ATO transistorised clocks, with ½ second pendulum. On the right can be seen the two coils, one wound over the other and on the left the copper tube Foucault regulator.
Fig. 15 : The transistorised clock without dial and movement. At the top left can be seen a little plastic box out of which protrudes a red sleeve and which contains the transistor. The larger box below it is for the battery. The button at the bottom right is for turning a small metal mass for fine magnetic adjustment once the pendulum has been roughly regulated.
-" Horlogerie électrique ", by R.P. Guye et M. Bossart, 1st edition (not dated, but approx. 1946) and 2 nd edition (1957)
-" Les horloges électriques Ato ", by Jean Mirault, bulletin ANCAHA No 74, 1995
-" The ATO Clock ", by Mel Kaye, NAWCC Bulletin No 344, 2003
-" ATO Battery Clocks ", von John Locke, 2003
- and other works too numerous to mention here.
The photo of the altimeter reproduced by courtesy of AH, an American collector.
The two designs already acknowledged by courtesy of Léon Hatot S.A. of the Swatch Group.
Figure 4 is by courtesy of Heidi Viredaz-Bader.
Other photos are from the author's collection.
